How much does a truck scale cost to buy and install?

Trying to budget for a truck scale is tough. Hidden costs can quickly ruin your project. We'll break down the full price, from the scale itself to installation, for a clear picture.

A new truck scale can cost from $15,000 to over $100,000. The final price depends on size, capacity, and materials. Surprisingly, the scale itself is often not the biggest expense. Installation, foundation, and software systems can cost even more.

Understanding the total cost of ownership goes beyond the price tag of the scale itself. Many factors influence the final bill, from the type of scale you choose to the complexities of getting it operational. Let's dig into the details to see where your money really goes.

How much does a truck scale cost?

Confused by truck scale price tags? It’s hard to compare quotes when you do not know what drives the cost. We’ll explain the key factors that influence the base price.

The truck scale deck itself can range from $10,000 for a small, steel deck scale to $70,000+ for a large, high-capacity concrete one. Key cost factors include the deck material, length, width, and weight capacity.

When you buy a truck scale¹, you are paying for the weighbridge², or the deck. The price of this part changes a lot. The two main materials are steel and concrete. Steel decks are popular because they are easier to move and install. But their price can change with the steel market. Concrete decks are poured on-site. They offer great durability and stability, but they need longer to cure. As a manufacturer with 19 years of experience, we have helped many clients choose the right material for their environment. The scale's size is another big factor. A standard 70-foot scale is common. But you might need a longer one for special trucks, which costs more. Finally, capacity matters³. A 60-ton capacity is standard. But if you need to weigh heavier loads, the internal structure and load cells⁴ must be stronger. This increases the price.

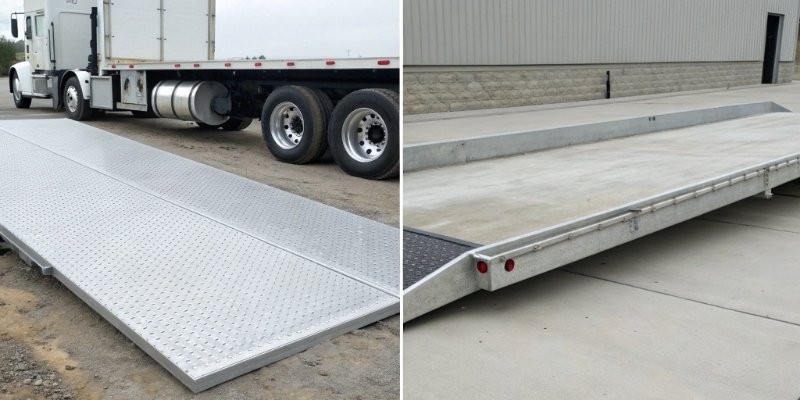

Steel Deck vs. Concrete Deck: A Quick Comparison

How much does it cost to install a truck scale?

You have budgeted for the scale, but what about the installation costs? These hidden expenses can be a shock. They can easily double the initial price. Let’s break down installation fees.

Truck scale installation costs, including the concrete foundation, can be from $15,000 to $40,000 or more. This price covers site preparation, foundation pouring, crane rental, and professional labor for assembly and calibration. This is often where the real cost is.

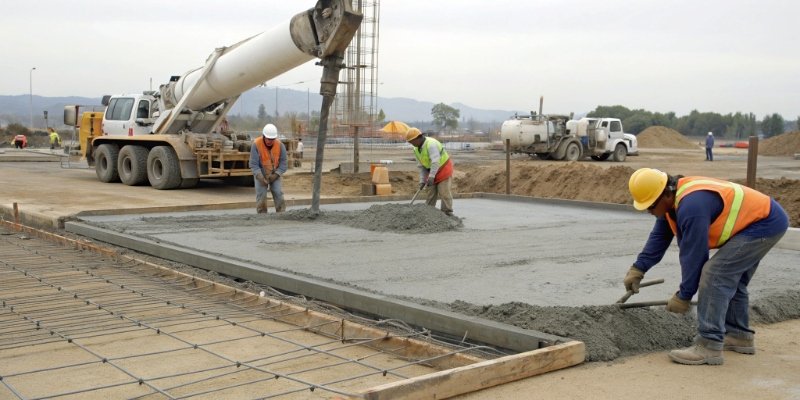

The installation is often the most underestimated cost. My experience over the past 19 years has shown that this part can easily cost as much as the scale itself, or even more. It is not just about placing the scale on the ground. A solid foundation⁶ is very important for accuracy and a long life. The cost for this alone can be large. You need to prepare the site, which might mean digging and making sure water drains properly. Then, you have to pour a concrete foundation. This can be a simple slab for a pitless scale or a complex pit for a pit-style scale⁷. A pit-style scale is flat with the ground but costs more to build and maintain. After the foundation is ready, you will need to hire a crane to set the weighbridge parts in place. Finally, skilled workers must assemble the scale, connect the electronics, and perform a certified calibration.

Key Installation Cost Components:

• Site Preparation: Clearing and leveling the ground.
• Foundation: Concrete, rebar, and labor (pit-style is more expensive).
• Crane Rental: Needed for lifting heavy deck sections.
• Labor: Workers for assembly, wiring, and calibration.
• Calibration: Using certified test weights to make sure it is accurate.

What is the cost of a 50 ton weighing machine?

Do you need a 50-ton scale but cannot find a clear price? It is frustrating to make a budget without clear numbers. Here is what you can expect to pay for this capacity.

A standard 50-ton truck scale, usually 60 feet long, can cost between $20,000 and $45,000 for the scale itself. The final price depends on the deck material and extra features like guide rails or digital indicators.

A 50-ton capacity scale is a very common request. The scale hardware itself is simple, but its cost is just the start. To make it a working weighing system, you need more parts. This is what many people forget to budget for. At a minimum, you will need a digital indicator⁸ to show the weight. This can be a basic model or a fancy one with data storage. You might also need a ticket printer. But to really use the scale's power, you need software. This is where the costs can really add up, as my insight noted. An unattended terminal or an automatic ID system lets trucks weigh without a person there. This saves a lot of labor costs over time. As a company that specializes in custom weighing systems, we help clients build a solution that fits their exact needs. We make sure they do not overpay for features they will not use.

Components of a Complete Weighing System:

1. Weighbridge (The Scale): The physical platform.
2. Load Cells: The sensors that measure weight.
3. Digital Indicator: The "brain" that shows the weight.
4. Junction Box: Connects load cells to the indicator.
5. Software: For data, tickets, and automation.
6. Peripherals: Printers, remote displays, traffic lights, RFID readers.

How much does it cost to weigh a truck on a CAT scale?

Are you thinking about using a public weighbridge instead of buying one? The per-use fee seems low, but these costs add up quickly. Let’s see if owning one is cheaper for you.

Weighing a truck at a public CAT Scale typically costs around $12 to $15 for the first weigh. A re-weigh within 24 hours costs about $2 to $3. While cheap for one-time use, these fees get very expensive for busy operations.

Using a public scale is great for a single weigh-in. But it is not a good business plan if you weigh trucks all the time. The costs are more than just the ticket price. You must add the cost of fuel and the driver's time to travel to the scale, plus any waiting time. Let's do some quick math. If you weigh just 10 trucks per business day at $13 per weigh, that is $130 per day. Over a year of 250 work days, you are spending $32,500 just on fees. This does not even include the hidden costs⁹ of lost work time and fuel. When you think that you can own a full, installed truck scale system for around $60,000, your investment pays for itself quickly. Owning a scale gives you control, makes work faster, and ends the repeat fees. It turns a regular expense into a long-term asset that helps your business grow.

Cost Analysis: Public Scale vs. Owning (Annual Estimate)

You can see the investment pays for itself in less than two years for a busy operation.

Conclusion

A truck scale's total cost includes the scale, foundation, installation, and software. Understanding all these parts is key to making a smart investment for your business's future.
